HeliLights by Vario Helicopter

Ord.No. 20/55

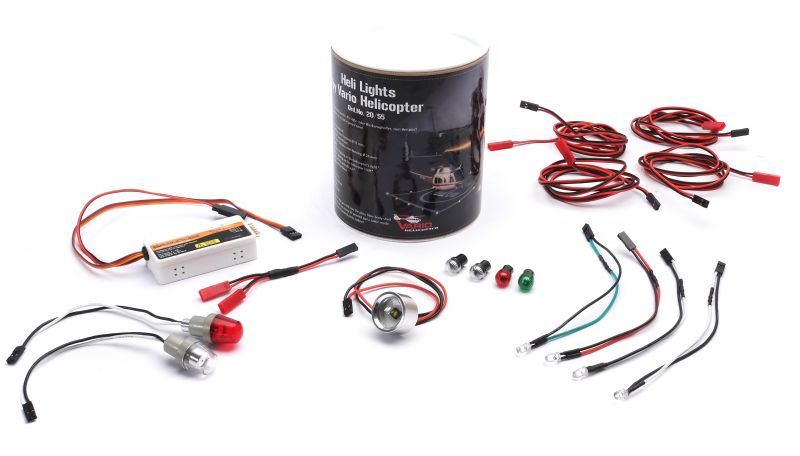

Includes
1 controller unit with 6 channels (Ord.No. 20/550)
2 white LED with stainless steel housing Ø 11 mm, plus clear & red caps for anticollision (Ord.No. 10/18, 10/180, 10/961)
1 white landing light with stainless steel housing Ø 24 mm for your heli's spotlight (Ord.No. 10/97)
1 green LED for position lighting on the helicopter's right* (Ord.No. 20/466)
1 red LED for position lighting on the helicopter's left* (Ord.No. 20/465)
2 white LED for any further anticollision* (Ord.No. 20/464)
Cable, Mounting feet and hardware
1 Y-cable (Ord.No. 20/460)
4 1000 mm cable (Ord.No. 20/469)

Features
Supply voltage 6 V - 42 V
10 Pre-set flash combinations
Output 5 V at 4 A max.
No soldering, plug & play!

*Mount into a tiny hole that you drill into the glass fiber body shell
to accommodate in one of our many 3D printed parts tailor made
for all Vario models! See 3D printed parts online!

Options
Ord.No. 10/96 Extra anticollison light red (e.g. for Lama)
Ord.No. 10/180 Extra anticollison cap clear (e.g. for Lama)
Ord.No. 10/960 Rotation light
Ord.No. 10/961 LED module white, Ø 11 mm stainless steel housing
Ord.No. 10/962 LED module red, Ø 11 mm stainless steel housing
Ord.No. 10/963 LED module green, Ø 11 mm stainless steel housing
Ord.No. 10/97 white landing light with stainless steel housing Ø 24 mm
Ord.No. 10/970 white landing light with stainless steel housing Ø 12 mm
Ord.No. 20/45 Folding searchlight Ø 50 mm
Ord.No. 20/49 Folding searchlight Ø 75 mm
Ord.No. 20/462 Light module „Luna“ for modern position lighting
Ord.No. 20/464 white diode with cable, sealed
Ord.No. 20/465 red diode with cable, sealed
Ord.No. 20/466 green diode with cable, sealed
Spotlights with Ord.No. 10/93 (Ø 54 mm), 10/94 (Ø 57 mm/Bell 47),
10/95 (Ø 40 mm), 10/98 (Ø 50 mm, EC 135, etc)
Ord.No. 20/51 Lamp sockets, red-green, Ø 10, 12, 15 and 20 mm
Ord.No. 20/52 Lamp sockets, clear, Ø 10, 12, 15 and 20 mm
Ord.No. 20/460 Y-cable to extend the 6 channels to more
Ord.No. 20/467 Extension lead "Heli lights" 300 mm
Ord.No. 20/468 Extension lead "Heli lights" 500 mm
Ord.No. 20/469 Extension lead "Heli lights" 1000 mm

Spares
Ord.No. 20/550 Braincube controller
