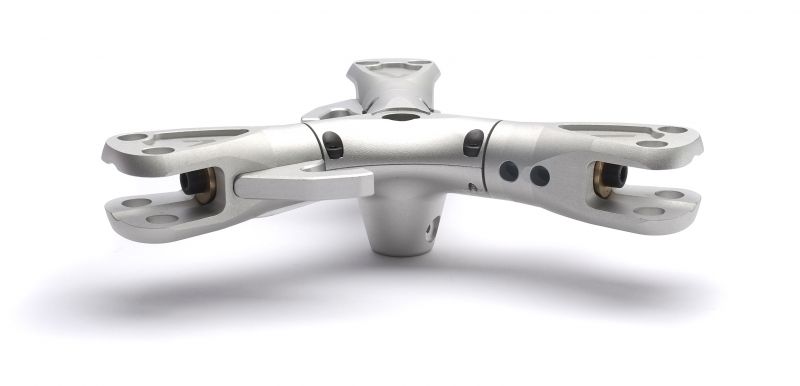

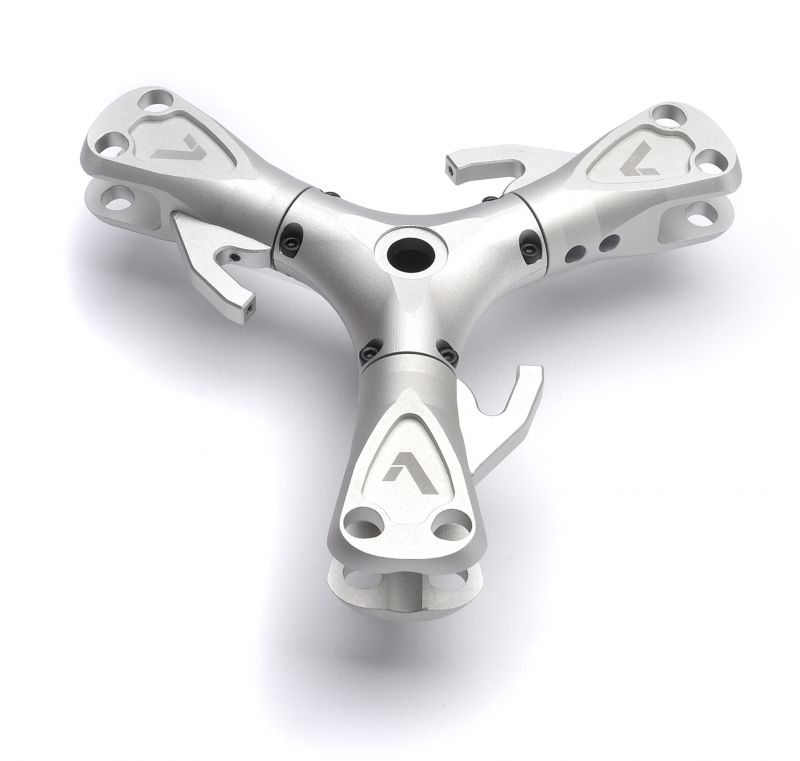

3-blade rotor head HELIOS for 10 / 12 mm

Ord.No. 703/12

• 3-blade rotor head
• 10 / 12 mm main rotor shaft
• full metal (aluminium/steel)
• blade handle 14 mm, 2-hole
• 3 mm rotor head screw
• For operation of models over 15 kg and 12 mm rotor shaft, a 4 mm rotor head screw (Ord.No. 061) must be used. For this purpose, the cross hole on the lower part of the rotor head must be drilled out.

The "Rotor Titans" are the next generation of rotor heads from Vario. They are not only sleek in appearance, but also wonderfully stable in hover and in flight.

This is especially apparent in windy conditions that often prevent many scale model helicopter pilots from having the confidence to fly their conventional ridged or standard dampened rotor head models.

Give this new rotor head a try, you will not be disappointed!

The range of use of the Rotor Titans is identical to that of the plastic heads Ord.No. 703/30, etc.


Plastic head – Hole for rotor head bolt is 150 mm	Rotor Titan – Hole for rotor head bolt is 170 mm
703/30, 703/32	703/12
704/30, 704/32	704/12
705/30, 705/32	705/12


Together with the existing/recommended rotor blades, the rotor diameter increases by 2 cm.

The recommended head speed is identical to those of the plastic heads

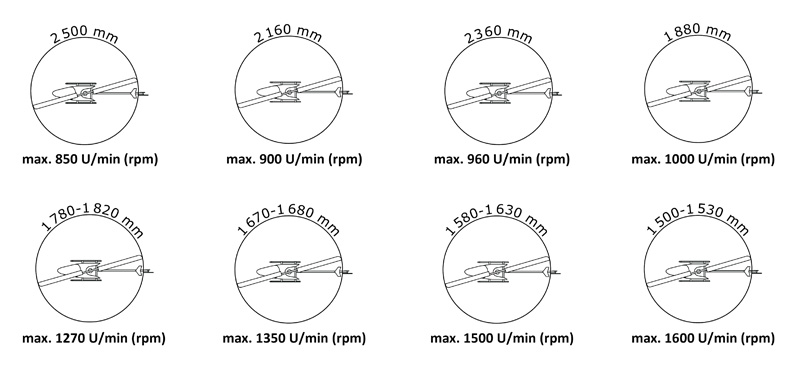

- see our safety instructions with the max. rotor speeds:

Max. rotor diameter: 2 meters
Max. take-off weight: 18 kg
