Electric mechanics

Ord.No. 1002/1

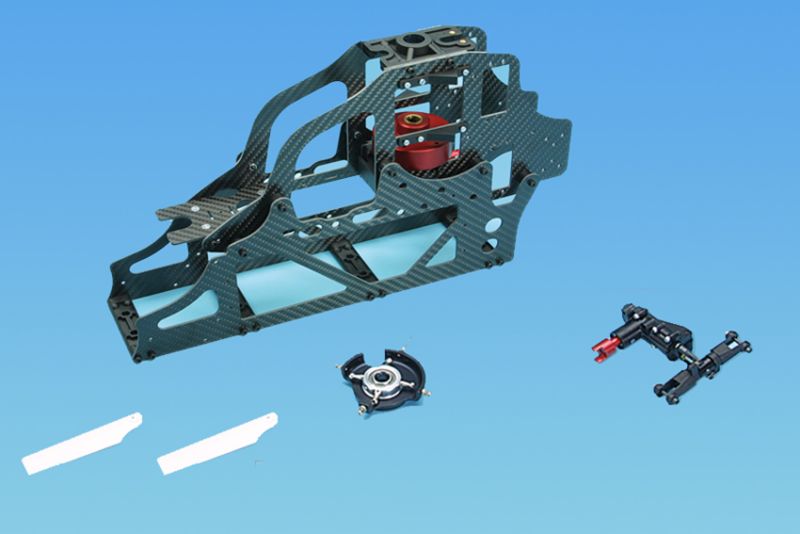

If you have a full-body helicopter with a rotor diameter of up to 1500 mm and would like to equip it with lightweight electric-powered mechanics, we recommend this proven system, which is based on the Silence trainer helicopter.

The system weighs only around 470 g, and its height makes it suitable for all those full-body helicopters designed for Sky Fox mechanics. The side frames and reinforcements are made of CFRP (carbon fibre).

To complement the system we recommend the Sky Fox rotor head, Ord. No. 1005/50, weight approx. 470 g, or the flybar-less rotor head, Ord. No. 1005/70, which only weighs around 150 g.

It is essential to select the rotor shaft according to the dome height of the fuselage. Here you should choose the appropriate item from the Sky Fox components range, and use a rotor shaft designed for Sky Fox mechanics.

The combination of motor pinion and main gear will need to be chosen to suit the motor you intend to install.
The motor mount, Ord. No. 59/9, can be used in conjunction with all commercially available motors.

The GRP reflex-section blades, Ord. No. 403, are suitable for this mechanical system with 1005/50 rotor head, or rotorblades 407 with rotor head 1005/70.
The mechanics is supplied in kit-form, i.e. not assembled.
