Scale rotor head for Alouette II

Ord.No. 703/94

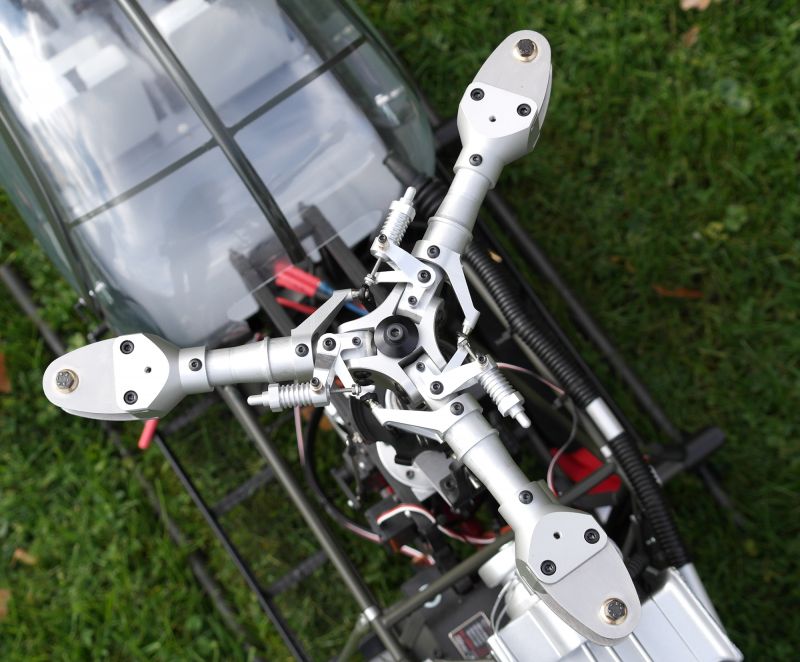

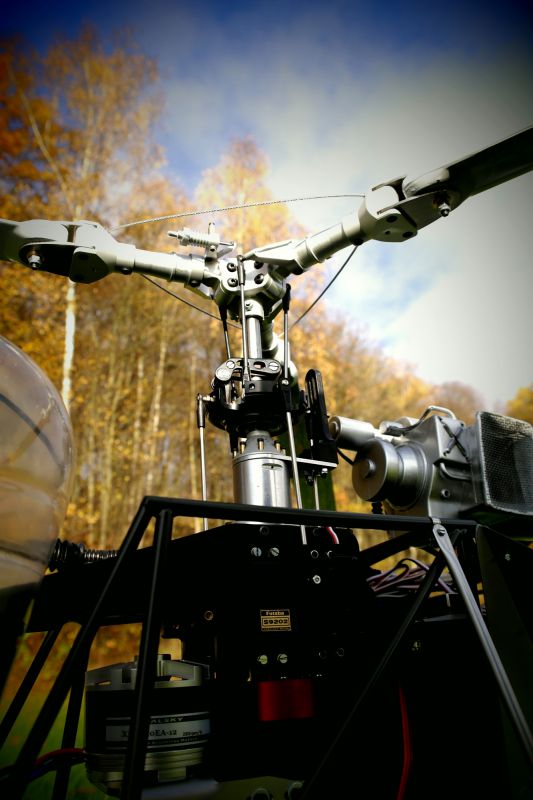

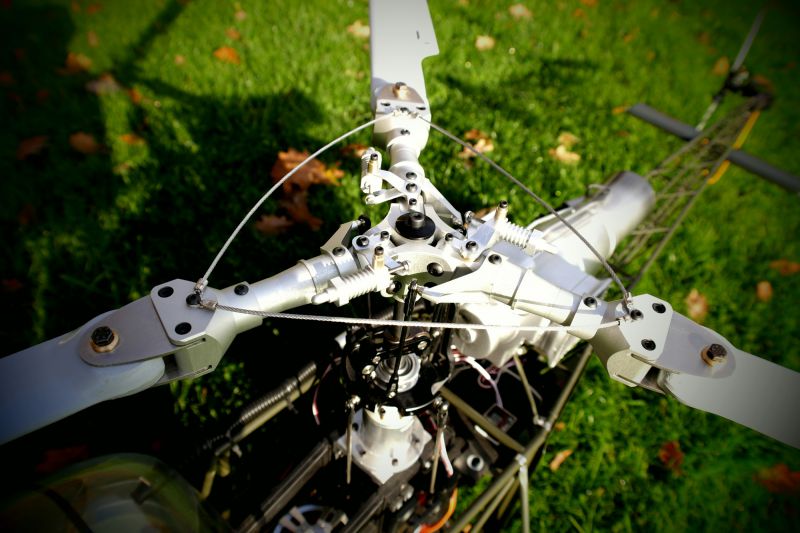

This rotor head is designed for the Vario Alouette II. It is suitable for electric, gasoline, PHT2, or methanol versions and is manufactured from scale-accurate aluminum. At Vario, appearance is one aspect, but reliable function is essential. Our tests confirmed satisfactory performance. The rotor head is supplied partially assembled and includes both single-hole and two-hole blade attachment options.

• For rotor shafts ø 10 mm and 12 mm

• Blade grip: 14 mm (adapter plates for single-hole and two-hole attachment included)

• Bolt circle for blade attachment: ø 255 mm

• Right-hand rotation (left-hand rotation with linkage at blade trailing edge)

Partially assembled

For operation on the Vario Alouette II, rotor blades Ord.No. 404/20 are required.
