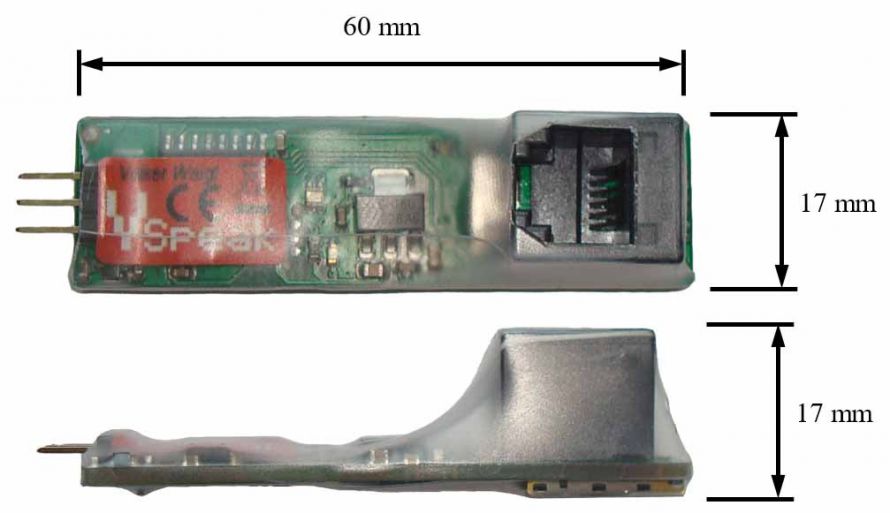

VSpeak ECU Converter JetCat

Ord.No. 3166

ECU converters are a link between the turbine electronic (called ECU) and the 2.4GHz remote controls with telemetry.
The measurements which are usually displayed on a control panel will be "converted" and send to the telemetry back channel of the respective remote control system.

For unidirectional telemetry systems, such as Multiplex MLink, the data can be transfered in only one direction, ie from the model to the radio - while in bidirectional systems, such as Jeti Duplex EX, data is transferred in both directions.

To avoid repercussions of the turbine control to the receiver, telemetry and ECU connector of the ECU VSpeak Converter are electrically isolated.

The VSpeak ECU converter for JetCat ECU is plugged into the ECU or IO board instead of JetCat GSU.The respective remote control system can be set using the programming adapter and the JetCat GSU. Individual parameters can also be set.

The VSpeak ECU Converter is updatable.
