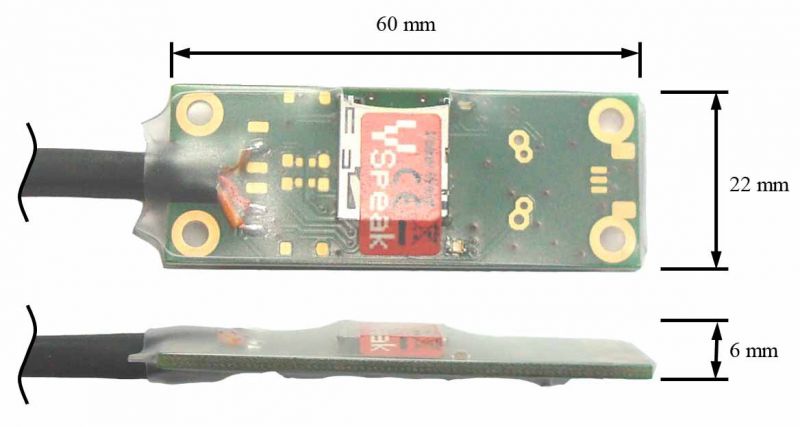

VSpeak ECU Converter JAKADOFSKY

Ord.No. 3165

ECU converters are a link between the turbine electronic (called ECU) and the 2.4GHz remote controls with telemetry.
The measurements which are usually displayed on a control panel will be "converted" and send to the telemetry back channel of the respective remote control system.

For unidirectional telemetry systems, such as Multiplex MLink, the data can be transfered in only one direction, ie from the model to the radio - while in bidirectional systems, such as Jeti Duplex EX, data is transferred in both directions.

To avoid repercussions of the turbine control to the receiver, telemetry and ECU connector of the ECU VSpeak Converter are electrically isolated.

The VSpeak ECU converter for Jakadofsky ECU is plugged into the ECU instead of EDT terminal.
The data that is displayed in the status displays of the TERMINAL can be transmitted by the ECU Converter over the telemetry channel to the radio.
Following ECUs are supported:
Jakadofsky PRO ECUand older Orbit AECU

The VSpeak ECU Converter is updatable.

Manual


Available for:

• Jeti Duplex EX
• Multiplex MLink (MSB)
• Graupner HoTT
• Futaba
• FrSky S.Port
• JR PROPO
• Spektrum (X-Bus)
