Mixer lever set

Ord.No. 78/40

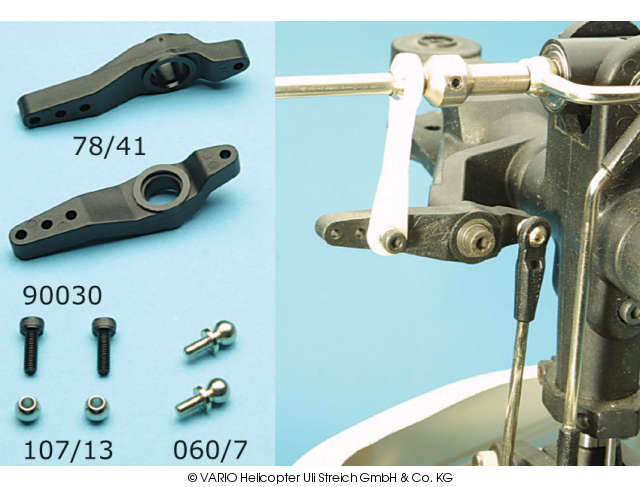

Mixer levers are an essential part of every flybar-controlled rotor head. From the swashplate a pushrod runs to the ballraced mixer arm which is screwed to the blade holder arm. The mixer levers transmit the control movement to the flybar via the double ball-link.
Additionial accessories for the use of mixer levers are either two flanged ballraces or two flanged bushes from Delrin as a low cost alternative.
The screwing on the blade holder arm complies with the kind of hole, i.e. it depends on the through hole or on the blind hole.

Please note for choosing the screws: blade holder 76/15 = socket-head cap screw 90075, blade holder 76/13 = socket-head cap screw 90085 with self-locking nut 90530.
